Finding the best electronic load for power testing depends on your specific needs, whether you’re testing batteries, power supplies, or other circuits. The ET5410A+ stands out as the overall best for its robust programmability and high power capacity, making it suitable for most professional applications. For those seeking a budget-friendly yet capable option, the 150W 20A Adjustable Electronic Load offers solid performance without breaking the bank. Meanwhile, the Rigol DL3021 caters to advanced users needing high precision and fast response times. The main tradeoffs involve balancing power range, complexity, and cost, so continue reading for the full breakdown to find your ideal match.
Key Takeaways
- The top picks excel in programmability, allowing precise control during testing processes.
- Power capacity and voltage range are critical factors that differentiate high-end models from budget options.
- Ease of use varies significantly; more advanced features often require a steeper learning curve.
- Build quality and reliability are consistent hallmarks among the best brands and models.
- Price often correlates with features and performance, but the best value balances cost with core needs.
More Details on Our Top Picks
ET5410A+ DC Electronic Load Tester, 400W Programmable Battery Testers, Single Channel, 0-150V, 0-40A, 2.8” TFT LCD Display
The ET5410A+ stands out for its robust construction and extensive measurement modes, making it a top choice for serious power testing. Compared with the 150W 20A Load, it supports higher voltage and current ranges, ideal for demanding applications. Its remote control and USB support add convenience, but it requires some technical know-how to operate effectively. The device’s durable build ensures long-term reliability, while its multiple measurement modes—CC, CV, CR, CP—offer versatility that others, like the Eyes.sys Load Tester, can’t match. However, its single-channel design and complexity might be less suitable for beginners or simple testing tasks.
Pros:- Supports multiple measurement modes including CC, CV, CR, and CP
- High-quality durable construction with effective heat dissipation
- Remote operation and USB support for flexible testing
Cons:- Requires some technical knowledge to operate optimally
- Limited to single channel testing, restricting simultaneous multiple device testing
Best for: Power electronics professionals needing precise, multi-mode testing in a compact, durable unit
Not ideal for: Hobbyists or beginners seeking an easy-to-use, plug-and-play solution without deep technical setup
- Power:400W
- Voltage Range:0-150V
- Current Range:0-40A
- Display:2.8-inch TFT LCD
- Channels:Single
- Material:PCB, silicone, aluminum
Bottom line: This pick makes the most sense for experienced users demanding versatile, high-range power testing capabilities.

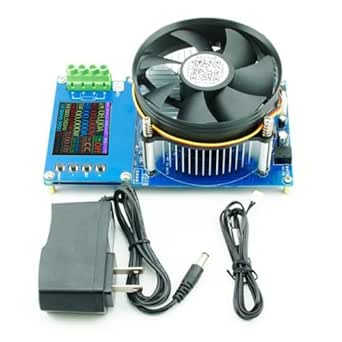

150W 20A Adjustable Constant Current Electronic Load with 2.4-inch TFT Color Display
This 150W load excels in testing batteries and power supplies with its support for multiple modes—constant current, voltage, power, and resistance. Its large 2.4-inch color display provides clear, real-time feedback, making it more user-friendly than the Eyes.sys Load Tester, especially for those new to electronic loads. While it offers essential protections against overrun conditions, its limited power capacity and need for an external temperature sensor could restrict use in high-power or complex testing scenarios. Nonetheless, its multi-mode operation and detailed display make it ideal for battery testing and quick power evaluations.
Pros:- Supports multiple working modes for flexible testing
- Large, easy-to-read color display
- Overrun protections for safety during testing
- External temperature monitoring capability
Cons:- Limited to 150W power capacity
- Requires external temperature sensor for full functionality
- Can be complex for beginners to set up and calibrate
Best for: Battery technicians and hobbyists testing small to medium power devices
Not ideal for: High-power industrial testing or users who need built-in temperature sensors without extra setup
- Maximum Power:150W
- Maximum Load Current:20A
- Display:2.4-inch TFT color screen
- Working Modes:Constant current, constant voltage, constant power, constant resistance
- Protections:Overrun protections
- Additional Features:Discharge stop voltage, discharge time, external temperature monitoring
Bottom line: This device is best suited for users needing versatile battery testing with a focus on ease of monitoring.
Eyes.sys Electronic Load Tester, USB Load Tester, 180W 200V 20A Battery Capacity Tester with 4 Modes
The Eyes.sys Load Tester provides a comprehensive testing experience with four modes—constant current, voltage, power, and resistance—making it versatile for battery and cable testing. Its large HD color screen ensures clear data display, surpassing simpler models like the 150W 20A Load in readability and functionality. Safety protections and dual temperature measurement add reliability for extended testing sessions. While setup can be complex, especially with external sensors, this device’s broad mode support and safety features make it a reliable choice for detailed diagnostics and quality assurance.
Pros:- Four versatile testing modes for broad application
- Large HD color screen for easy data readout
- Built-in safety protections for reliable operation
- Dual temperature measurement for accurate monitoring
Cons:- Setup can be complicated for less experienced users
- Limited to 180W power, restricting high-power testing
Best for: DIY tech enthusiasts and technicians needing multi-mode battery and cable testing with safety features
Not ideal for: Users seeking straightforward, quick tests without complex setup or external sensors
- Power:180W
- Voltage:200V
- Current:20A
- Modes:4 (constant current, constant voltage, constant power, constant resistance)
- Display:2.4-inch HD color screen
- Safety Protections:3 intelligent protections
Bottom line: This pick makes the most sense for users valuing comprehensive, safe testing with detailed real-time feedback.
Programmable DC Electronic Load 120W, 0-150V, 0-20A, Support CC, CV, CR, CP Modes
This model stands out for its wide voltage and current ranges and support for multiple testing modes, making it highly adaptable for various power supply and battery tests. Compared to the Rigol DL3021, it offers a simpler interface but with fewer advanced communication options and a slightly lower power capacity. Its ability to switch between constant current, voltage, resistance, and power modes provides a flexible platform for detailed testing, though the 120W power limit might restrict use with high-capacity power supplies. The LED display ensures real-time monitoring, but the device’s manual controls may challenge beginners. Overall, it makes sense for DIY enthusiasts or technicians needing versatile testing at a moderate power level, while professionals might prefer the more feature-rich Rigol for complex setups.
Pros:- Supports multiple testing modes for diverse applications
- Wide voltage and current ranges for versatility
- Includes measurement functions like watt-hours and amp-hours
Cons:- Limited to 120W power capacity, restricting high-power tests
- No wireless or remote control features
- May be complex for beginners unfamiliar with multiple modes
Best for: Electronics hobbyists or technicians requiring a flexible, multi-mode electronic load for circuit and battery testing.
Not ideal for: Users needing high-power testing or advanced remote control features, as this model is limited to 120W and lacks wireless connectivity.
- Power:120W
- Voltage Range:0-150V
- Current Range:0-20A
- Resistance Range:0.1-999.9 ohm
- Display:LED screen
- Modes:CC, CV, CR, CP, Short-circuit
Bottom line: This programmable load is suited for detailed, versatile testing within moderate power limits, ideal for hobbyists and technicians.
Rigol DL3021 Programmable DC Electronic Load, 150V/40A, 200W, 15kHz
The Rigol DL3021 excels in delivering high-resolution data and advanced testing modes, making it the top choice for professional power supply and battery testing. Its high-resolution TFT display provides clear, simultaneous readings of voltage, current, and resistance, surpassing the simpler LED display of the 120W programmable load. The inclusion of multiple communication interfaces (RS232, USB, LAN) allows for remote operation, which is a significant advantage over less connected models. Its 200W power capacity and dynamic modes support complex testing scenarios, but the sophisticated interface can be daunting for beginners. Compared to the 120W programmable load, it offers greater power, precision, and control, making it the go-to for serious testing environments. It’s best for professionals or advanced hobbyists needing comprehensive data and control options.
Pros:- High-resolution display for detailed real-time data
- Wide range of static and dynamic testing modes
- Built-in communication ports for remote operation
Cons:- Complex interface requires learning curve
- Limited to DC loads, not suitable for AC applications
- Higher cost compared to simpler models
Best for: Power supply engineers and advanced hobbyists who require precise, high-power testing with remote control capabilities.
Not ideal for: Entry-level users or casual testers seeking simple operation, due to its complex interface and extensive feature set.
- Voltage:150 V
- Current:40 A
- Power:200 W
- Frequency:15 kHz
- Display:4.3-inch TFT LCD
- Protection Features:Overvoltage, overcurrent, overpower, overtemperature, reverse voltage
Bottom line: This load is perfect for professionals needing precise, high-capacity testing with extensive data collection and remote control options.
How We Picked
These products were evaluated based on core performance metrics such as voltage and current range, power capacity, and programmability. Usability features like interface design and display quality were also key, as they impact how effectively a user can operate the load. Build quality and durability were considered, especially for continuous or heavy-duty testing environments. We prioritized models that offer good value for their feature set, avoiding overly complex options that might be unnecessary for most users. The ranking reflects a combination of technical capability, user-friendliness, and overall reliability.Factors to Consider When Choosing Best Electronic Load For Power Testing
Choosing the best electronic load for power testing involves understanding several key factors that directly affect performance and usability. It’s important to consider your testing requirements, budget, and experience level to select a model that offers the right balance of features and value. A well-chosen load can improve testing accuracy, extend equipment lifespan, and streamline your workflow, but a poor fit can lead to frustration and subpar results.Power Range and Voltage Compatibility
Ensure the electronic load can handle the maximum voltage and current you plan to test. A model with a higher power capacity than your typical use case provides flexibility for future projects, but it may come with increased cost and complexity. Matching your load’s specs to your applications prevents overloads and ensures accurate readings, especially when testing high-capacity power supplies or batteries.
Programmability and Control Options
Programmable loads offer precise control over testing parameters, which is essential for automated or complex testing sequences. Look for features like support for CC (constant current), CV (constant voltage), CR (constant resistance), and CP (constant power) modes. While more advanced programmability enhances versatility, it can also complicate operation for beginners, so consider your comfort level with digital controls.
Display and User Interface
An intuitive display and controls make setup and monitoring easier, especially during long testing sessions. TFT screens and clear menus reduce errors and save time. Conversely, simpler interfaces may suffice for occasional use, but they might limit real-time monitoring capabilities which are important for detailed analysis.
Build Quality and Reliability
Durable construction and reliable components are critical for consistent performance, particularly in continuous testing environments. Cheaper models might save money upfront but can compromise longevity. Consider brands with good reputations and user reviews that highlight product durability over time.
Price and Overall Value
While high-end models offer advanced features, they also come at a premium. Balance your budget against your testing needs—if you’re performing frequent, high-precision tests, investing in a premium load makes sense. For occasional or hobbyist use, a more affordable model that covers basic specs may be sufficient.
Frequently Asked Questions
How do I choose the right power range for my electronic load?
Select a load with a maximum voltage and current rating that exceeds your highest expected testing levels. For example, if you test 50V batteries at 20A, choose a load rated for at least 60V and 25A to provide margin and avoid overloads. This ensures safety and accuracy, particularly when testing new or unpredictable power sources.
Is programmability necessary for a beginner?
While programmability adds versatility, it may not be essential for beginners who primarily perform simple load tests. Basic models with manual controls can suffice for straightforward testing. However, as your testing needs grow or become more automated, investing in programmable options can save time and improve precision.
What is the importance of display quality in an electronic load?
A clear, high-quality display simplifies setup and real-time monitoring, which is especially important for complex or long-duration tests. Touchscreens or TFT displays provide better visibility and easier navigation. Poor display quality can lead to misreadings or slower adjustments, impacting test accuracy and efficiency.
Should I prioritize a higher power capacity or more features?
Prioritize based on your primary testing needs. If you work with high-power batteries or power supplies, higher capacity models prevent overloads and provide room for growth. If your focus is on detailed, automated testing, features like programmability and precise control may outweigh raw power capacity. Balance these factors according to your application.
Are there any common mistakes to avoid when choosing an electronic load?
A common mistake is selecting a model with insufficient voltage or current ratings, which can damage the device or produce inaccurate results. Overlooking usability features like display clarity or control options can also hinder effective testing. Always verify that the load’s specifications align with your intended use and that it offers a comfortable user experience for your level of expertise.
Conclusion
The best overall pick for most users is the ET5410A+ due to its balanced mix of power, programmability, and reliability. For those on a budget, the 150W 20A Adjustable Electronic Load offers solid performance at a lower price. If you need high precision and rapid response, the Rigol DL3021 is ideal for advanced testing environments. Beginners should consider simpler, user-friendly models, while professionals with demanding needs should look toward high-capacity, feature-rich options. Choosing the right load depends on matching your testing volume, complexity, and budget to these options.
